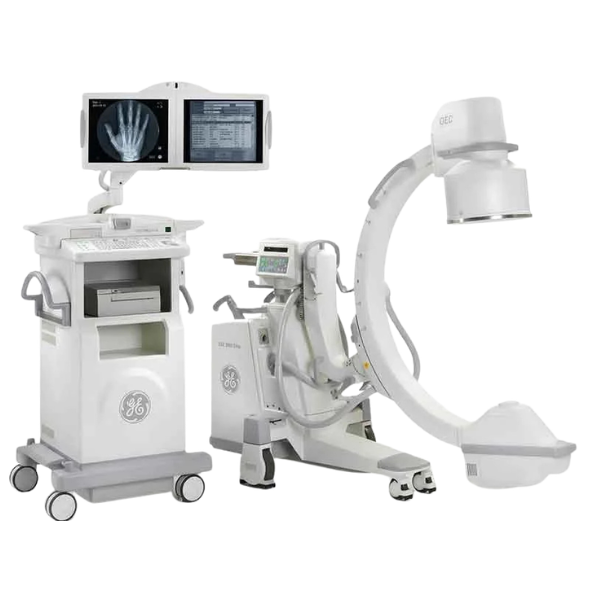

GE OEC 9900 Elite

Core Technical Specification Metrics

• X-Ray Generator Capacity: True 60 kHz high-frequency system; 15 kW peak power tracking.
• X-Ray Tube Design: Premium split-block configuration separating the high-performance tube from
  the main generator block.
• Anode Target Composition: High-capacity rotating anode engineered to handle up to 300,000 Heat
  Units (HU).
• Anode Cooling System Performance: Active ducted-fan assembly dumping 85,000 HU per minute
  for continuous fluoro uptimes.
• Available Image Intensifier Dimensions: Standard 9-inch (23 cm) C-arm clearance or expanded
  12-inch (31 cm) wide-field options.
• Mechanical Range of Motion: Minimum 115° orbital rotation (90° under-scan / 25° over-scan
  capabilities).
• Workstation Interface Specs: Dual high-resolution flat-panel monitors supported by a fully
  articulating display arm, absolute touchscreen control layout, and on-screen collimator position
  previews.
